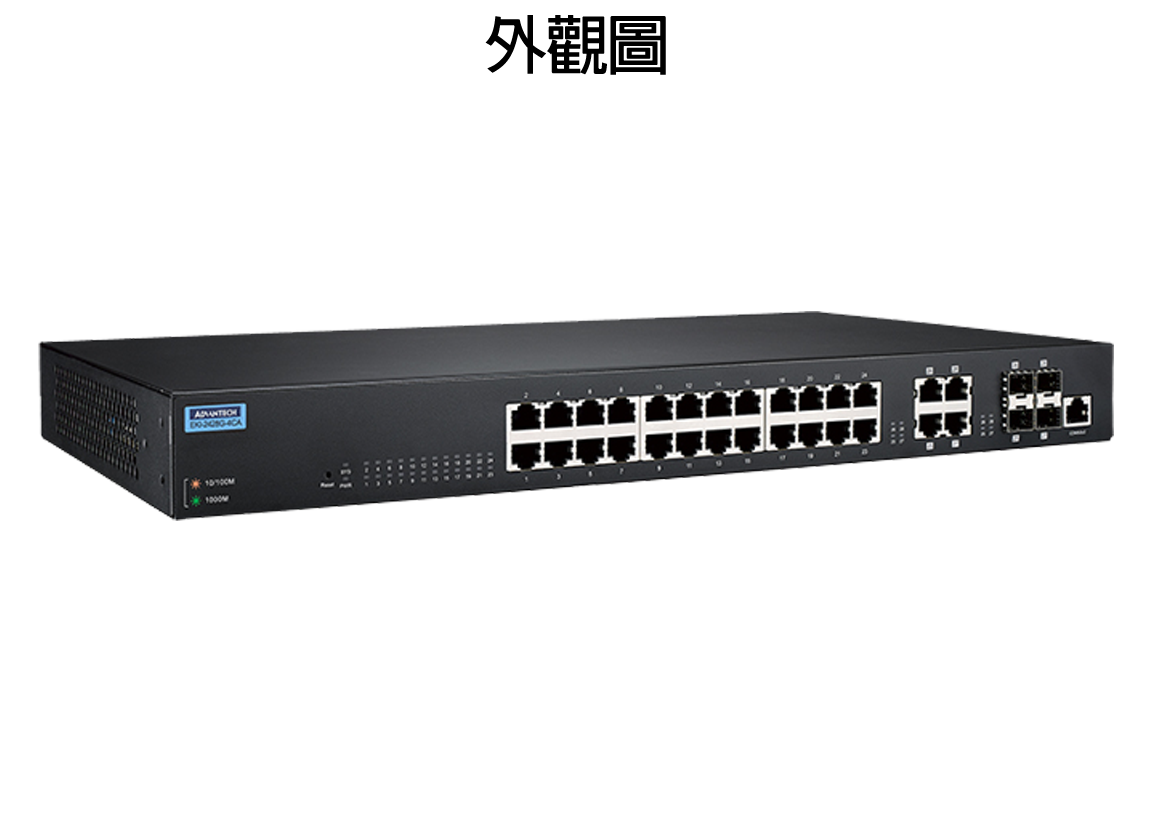

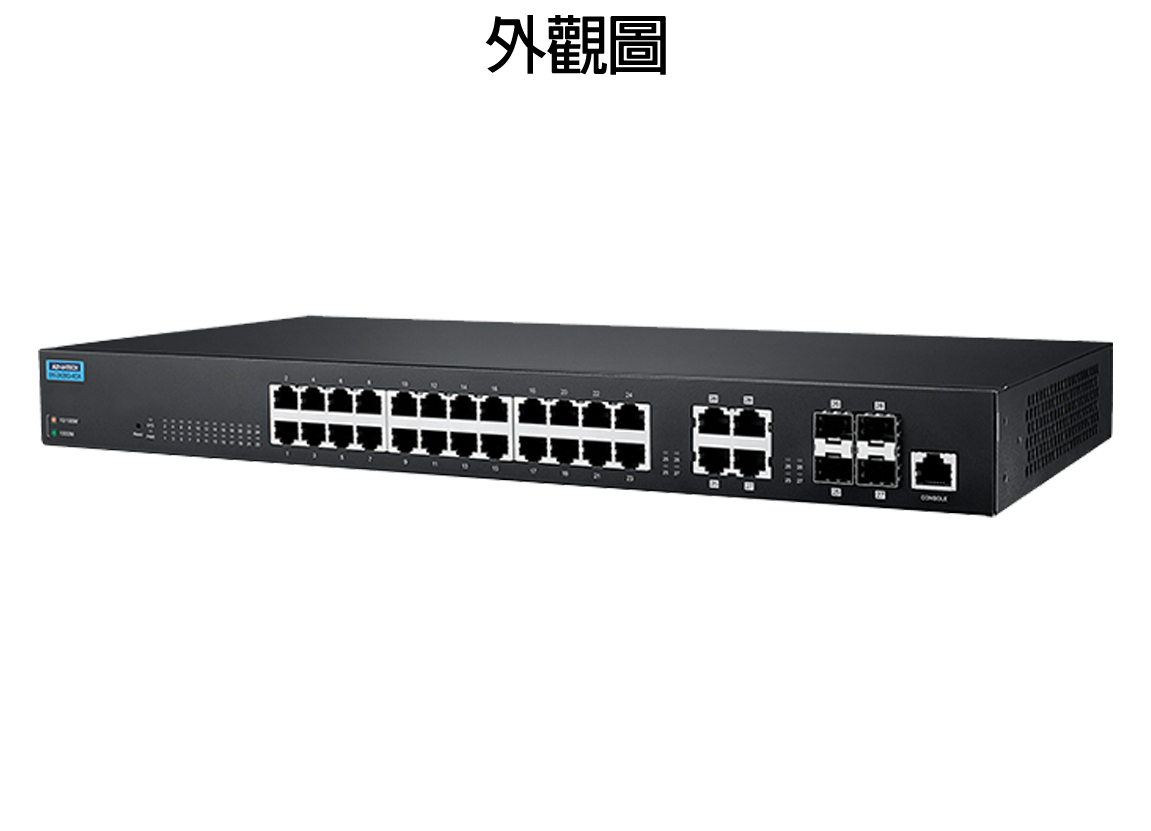

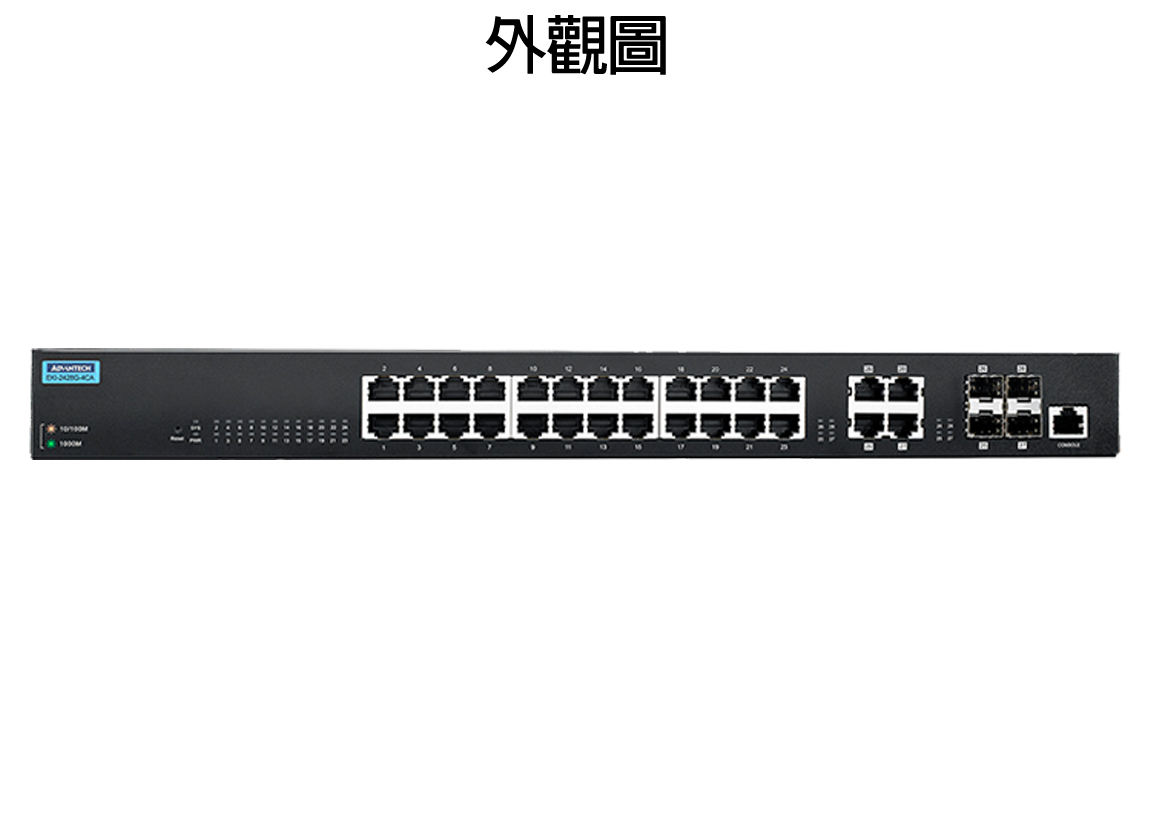

24GE + 4G 組合非管理型乙太網交換機，19" 機架式安裝，100~240VAC，0~60℃
型號: EKI-2428G-4CA
- 24 x 千兆埠 + 4 x 千兆銅纜/SFP組合埠
- 支援自動MDI/MDIX
- 有線速數據傳輸
- 輕鬆增加千兆乙太網的頻寬，以擴展網路佈署
- SFP插槽，方便靈活的光纖擴展
- 100~240VAC電源輸入
- 1U 19" Rack mount
| LAN |
10/100/1000Base-T (X), Optional 100Base-FX, 1000Base-SX/LX/LHX/XD/ZX/EZX |
| Communication standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control |
| Transmission Distance |
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for Gigabit port) SFP: Up to 110 km (depends on SFP) |
| Transmission Speed | Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation Gigabit Fiber: Up to 1000 Mbps |
| Switch Capacity | 56Gbps | Forwarding Rate | 41.7Mpps |
| Mounting | 1U 19" Rack mount |
| Dimensions (W x H x D) | 441x 44 x 196 mm(17.36" x 1.73" x 7.72" inch.) |
| Enclosure | IP30, metal shell with solid mounting kits |
